How do I find the right one? Wingfoil Foil for my personal needs?

We don't want to leave you alone with this question and have summarized the most important aspects Foil-Choice summarized for you.

Still not sure?
Then please contact us for one Expert advice.

The size of the front wing


The area

One of the most important factors in the Foil-Selection is the area.

In general are Foils over 1500 cm² good for beginners suitable. Of course, the choice always depends on many factors such as body weight. This one Foils generate enough lift to lift the board out of the water even at low speeds and at the same time ensure the greatest possible stability.
As your driving skills increase, the desire for a smaller one becomes smaller Foil getting bigger. One smaller area goes along with lower resistance and therefore also with higher speed. Foils However, 1000 – 1500 cm² requires more attention from the surfer. If you master the pumping technique well, you can get into foiling almost as quickly as with the larger alternatives. The higher speed allows you to fly easily through wind holes.
Advanced and experts should also take a look at Foils with less than 1000 cm² throw on surface. They require a high level of driving skill and allow spectacular speeds.

Aspect ratio

Just as important as the surface area is the span and the corresponding profile.


The English term Aspect ratio describes nothing other than that Ratio of span to area. On the whole, "Low-mid aspect" - Foils a thick and deep profile with a large surface area and a small span. They fly steadily and turn easily. In addition they generate a lot of lift and help you take off even at low speeds and with little wind.
The "High Aspect" - Foils are thinner and have a large span. They are highly efficient and glide better through wind holes. You need a little more speed to take off, and they require more feeling when foiling. In return, you achieve a higher final and average speed.
The aspect ratio also influences the curve radius. With the same surface area, an HA-Foil with a radius greater than an LA-Foil.

CLOUD-XI Cloud-9 Carbon Foil Set FS Series Wingfoil Foiling Surf Foil

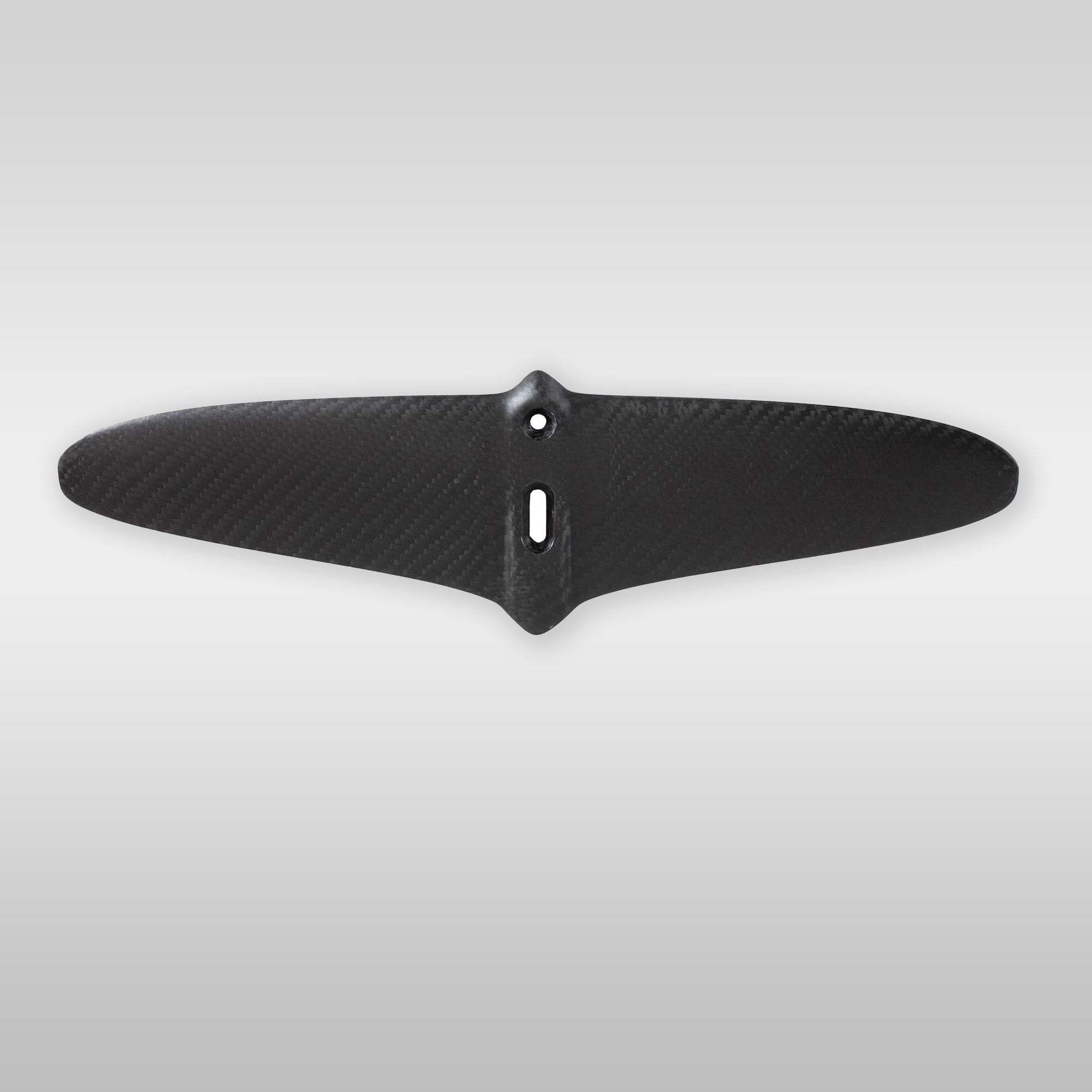

The stabilizer (backwing)

The rear wing plays an almost as important role as the front wing. It influences the overall behavior of the Foils. Simply changing the rear wing while keeping the same front wing can deliver a significant performance boost.
Alarge stabilizerwith a lot of space isimportant for beginnersIt provides plenty of lift and stability.
On the other hand, asmall, stretched backwingfor less resistance, more speed,tighter curvesand aimproved maneuverability.

wingfoil wing foil f-one fuselage alu74 surf

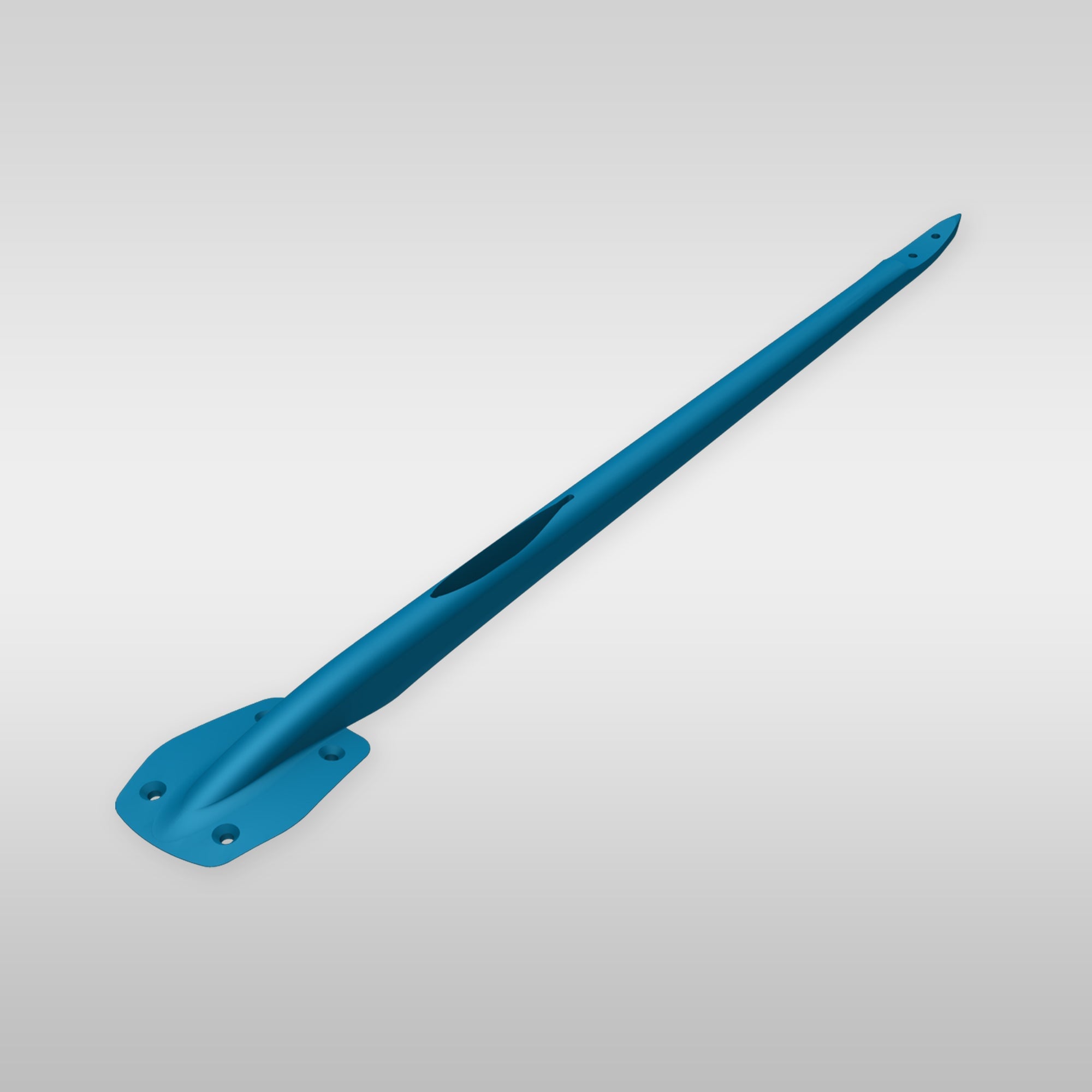

The fuselage

The fuselage refers to the connection between the two wings and the mast.
Just like a larger or smaller backwing, the length of the fuselage also has a significant impact on handling.
In general, the following applies:The longer the fuselage, the more stable the flight. Foil.A short fuselage measuring less than 70 cm makes the Foil more agile and maneuverable. Therefore, a long fuselage is recommended at the beginning to make it as easy as possible to get started in the sport.

wingfoil wing foil mast f-one carbon mast

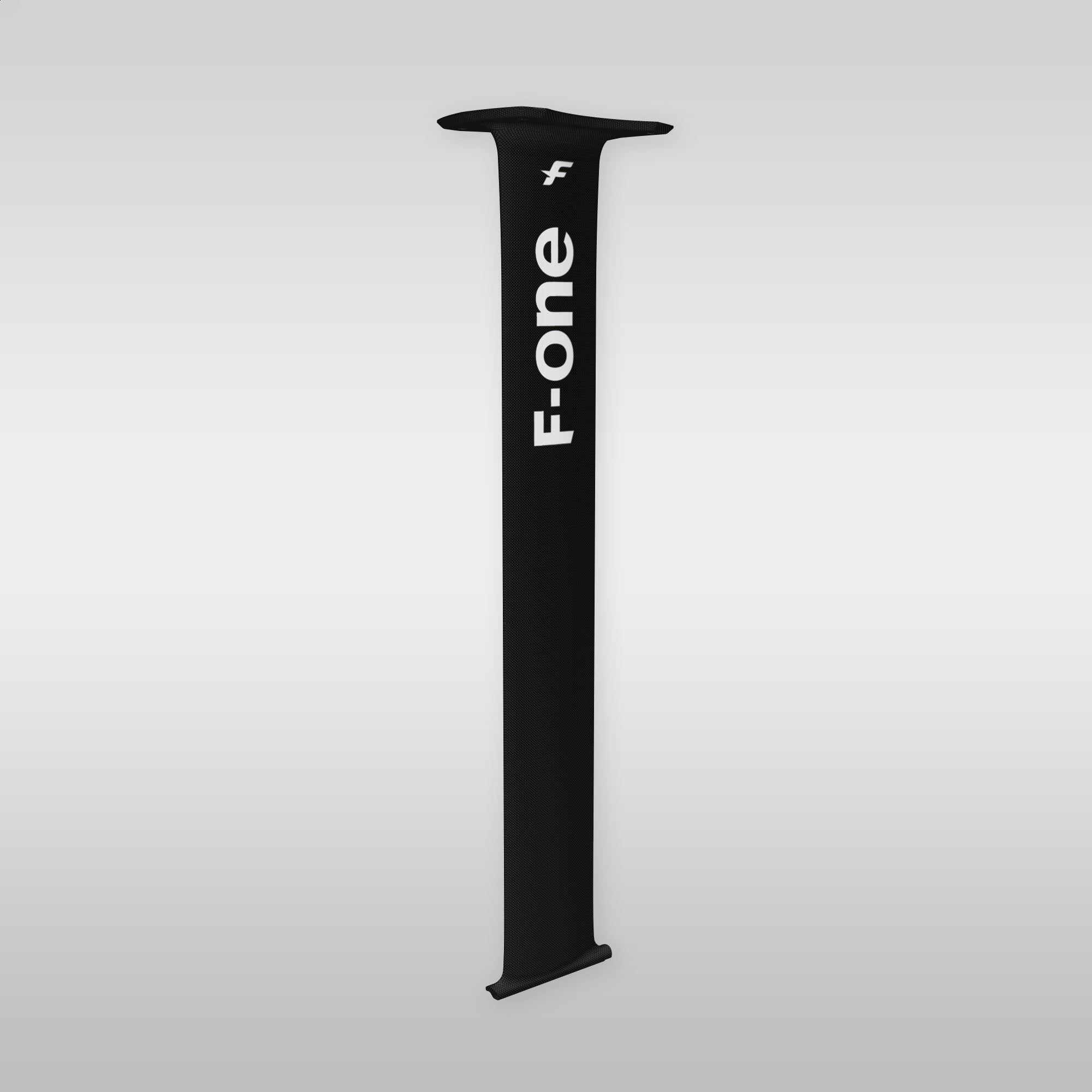

The Foil mast

Many manufacturers offer a choice between aluminum and carbon masts.
Aluminum poles are more resistant to external influences and significantly cheaper to buy. This makes them ideal for beginners. The carbon alternatives are lighter, slightly stiffer, and therefore perfect for anyone who wants to get the most out of their equipment.

The correct mast length:It is easier to learn wing foiling with a short mast, as you only fall from a low height if you crash. However, you also have little time to react to avoid a crash. A mast measuring around 60-75 cm is ideal for beginners. In flat waters, a short mast is of course essential.
This is countered by a long mast, which provides greater leverage and allows for more radical maneuvers without the Foil comes out of the water.
