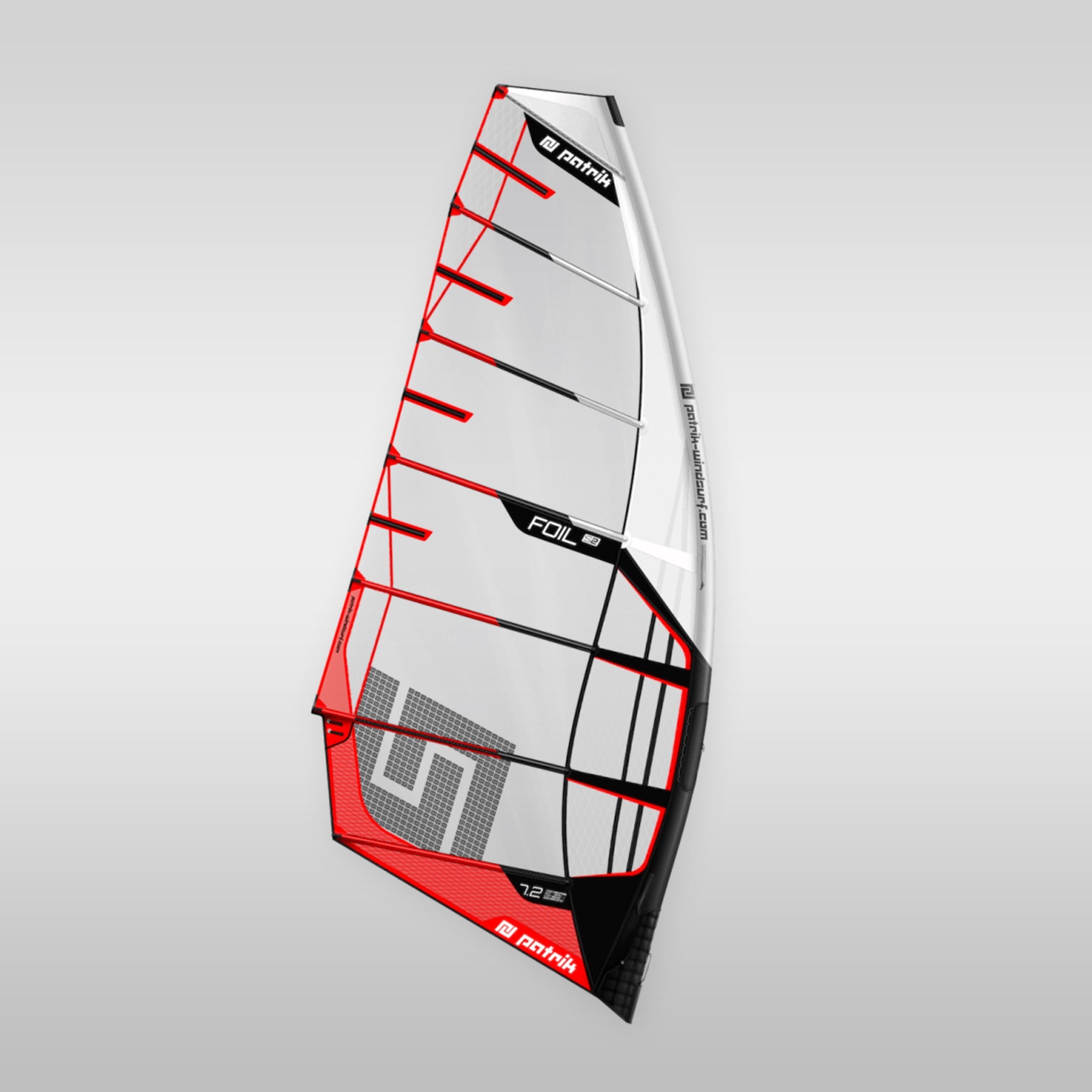

We present the Patrik Foil S2 sail.
COMPETITION SLALOM/SPEED FOIL SAIL OPTIMISED FOR FLYING ON THE LIMIT WITH MAX AVERAGE SPEEDS.
7-Batten
4 Cam
High-Load X-Ply Panel
Extra large sleeve.
OVERVIEW
Control, control, control. The FoilS2 is a pure slalom and speed foil sail for the competition rider who is searching for the fastest and most technically advanced foil sail out there. The high aspect ratio design allows for perfect aerodynamics. We have optimised the sail for maximum average speed. The more controlled and equal the speed of your flight is the easier you can move closer to the edge of what's possible in modern foil racing. You want the perfect foiling machine?! Here comes the PATRIK FoilS2.
PERFORMANCE
| EARLY TAKE-OFF | 9/10 |
| ACCELLERATION | 9/10 |
| TOP SPEED | 10/10 |
| AVERAGE SPEED | 10/10 |
| HIGHEND CONTROL | 10/10 |
| UPWIND ANGLE | 9/10 |
| HANDLING | 7/10 |
| FRONT- / BACKHANDED | 5/10 |
| WINDRANGE | 9/10 |
| WEIGHT / DURABILITY | 5/10 |
| RIDER LEVEL | 9/10 |
* Compared to our other pure racing sails. (red)
SPECS
|
Luff (+- 1 cm) |
Boom (+- 1cm) |
Ideal mast | Alternative softer mast | Cambers | |
| 3.6 still in R&D | 355 | 151 | SDM 340 - IMCS 15 | / | |
| 4.2 still in R&D | 385 | 159 | SDM 380 - IMCS 17 | / | 4 (3 + 1) |
| 4.8 | 409 | 169 | SDM 400 - IMCS 19 | SDM 380 - IMCS 17 | 4 (3 + 1) |
| 5.4 | 431 | 175 | SDM 420 - IMCS 21 | SDM 400 - IMCS 19 | 4 (3 + 1) |
| 6.0 | 451 | 183 | SDM 440 - IMCS 23 | SDM 420 - IMCS 21 | 4 (3 + 1) |
| 6.6 | 473 | 191 | SDM 460 - IMCS 25 | SDM 440 - IMCS 23 | 4 (3 + 1) |
| 7.2 | 495 | 199 | SDM 480 - IMCS 29 | SDM 460 - IMCS 25 | 4 (3 + 1) |
| 7.8 | 519 | 203 | SDM 500 - IMCS 32 | SDM 480 - IMCS 29 | 4 (3 + 1) |
| 8.4 | 539 | 213 | SDM 520 - IMCS 33 | SDM 500 - IMCS 32 | 4 (3 + 1) |
CONSTRUCTION
Racing is a "no-compromise" area in Patrik Diethelm's dictionary. Every detail is being optimized with maximum performance in mind.
All the panels inside the sleeve are made by the thickest monofilm available which provides the best stiffness and a locked profile where the main shape is. The main panels are 5 MIL clear monofilm from B7 to B4 and then 4 MIL above that batten. Why always clear? Because this material is few grams lighter than its colored alternative! For the foot panel and a minimalistic area around the clew we kept a good impact resistance 5 MIL red x-ply materials. That are often stressed when your sail rubs on the deck grip of the ultra-wide racing boards. Along the leech, you will again find 5 MIL (closer to the clew) and 4 MIL (closer to the top) clear x-ply to keep the rear edge of the sail stable and aerodynamically clean even in hi-wind choppy conditions. For the mast sleeve, we reduced the amount of PE fabric material (which stretches more and absorbs little amounts of water) and maximized the 2 MIL x/scrim-ply area instead, which is super light but still with the highest number of fibers per sqm. - so this material is perfect to spread the load across the whole sail.
TRIM
Make sure to set the required downhaul indicated by the color changes on the batten sleeves. Use the clew trim options to adjust the sail to the wind conditions.
PRO TIPS
"Fast and controlled, giving you the most stable flight without sudden load changes. This is the most advanced concept of a pure foil sail out there. Not lifting the nose in the gusts, never pushing you down and aerodynamically perfect!"
ALEX COUSIN (Sails R&D)
"For the DEFI competition I need a sail with the best possible average speed no matter how the conditions will change on the long reach. The FoilS2 can handle difficult up- and downwind angles with ease and is the most controlled foil sai I've ever used."
NICO WAREMBOURG (2x DEFI winner)
"This is my favourite sail of all times. The Foil S2 gives me the control and speed I need to win races. Use the trim options to adjust the sail for your needs. Use the high clew position as a standard and the low position to depower the sail and gain even more control."
MICHELE BECKER (German Tour Winner 2022)
