We present the boom outhaul trim system.
The set consists of:
2x ClamCleat 244 + CL105/111/115/134 + rubber pads
2x Allen® transfer block
1x 3m Marlow® Formuline Dyneema 3.8mm
2x 1M rope of your choice
Special features: The highest quality trim system on the windsurfing market.
This set contains high-quality components for your trim system.

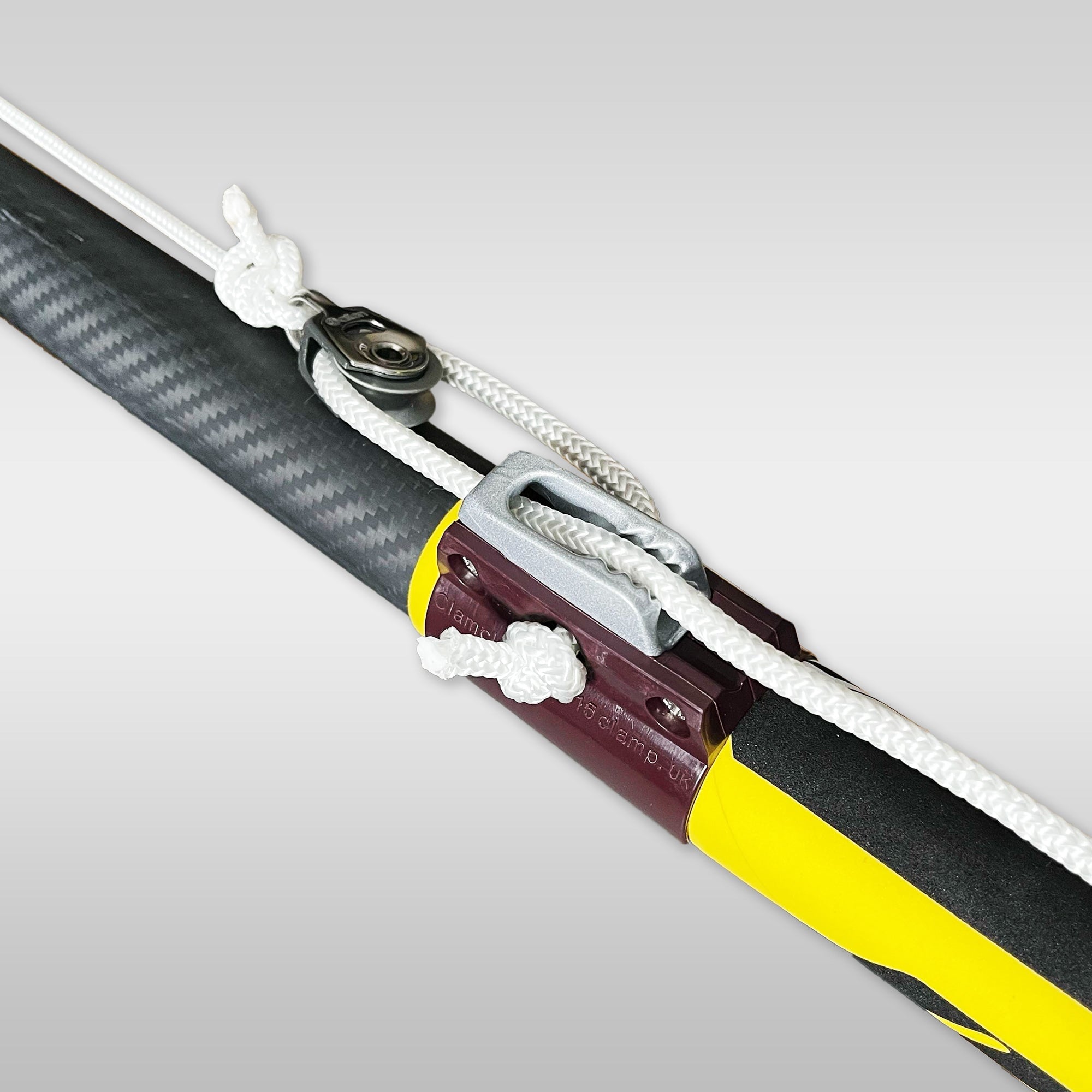

ClamCleat® clamps that are permanently installed on the boom.
Marlow® Formuline Dyneema rope, which holds your sail at the end of the boom and is constantly moved in the clamps of your boom. By using this rope, you are protected against wear and tear for many years. If you need less than three meters, you can also use the rope for your luff trim.
You can choose your "pull rope" from the following ropes. The thicker the rope, the easier it is to grip but also the less good the gliding properties:
- Marlow® Formuline Dyneema 3.8mm
- GLEISTEIN MegaTwin Dyneema 5mm (our recommendation)
Highest strength, lowest elongation, long service life: the all-rounder at the highest level
Construction
- 12-plait core made from Dyneema® SK78 fibers
- Intermediate cover made of polyester staple fiber
- Cover 24- or 32-plait braided from high-strength polyester
- Gleistein marking yarn orange
Worth knowing
- Wire rope-like strength and elongation
- Abrasion-resistant cover, suitable for stoppers
- Very stable rope cross-section
- Dyneema® SK78 shows inelastic elongation (creep) under permanent load. Readjustment may be necessary as a result.
- Dyneema® ropes can be stripped because Dyneema® SK78 has very good UV resistance
- Universal line: Ideal for aft and downhauls, topgallants, reefing lines, bull tack and cunningham
- GLEISTEIN rope DISCOVER 8mm:
Hard and soft at the same time: heavy-duty sheet - and yet grippy thanks to the sophisticated fiber mix
Construction
- 8-plait braid made of Dyneema® SK78 / polyester staple fiber blend
- available in white / red and white / blue
Worth knowing
- Pleasantly handy and grippy braiding for driving out of the hand
- Holds excellently in stoppers
- High knot strength
- Universal line, especially on dinghies, with many possible uses
