We present the CLAMCLEAT® Vertical Integral Fairlead Clamp CL228

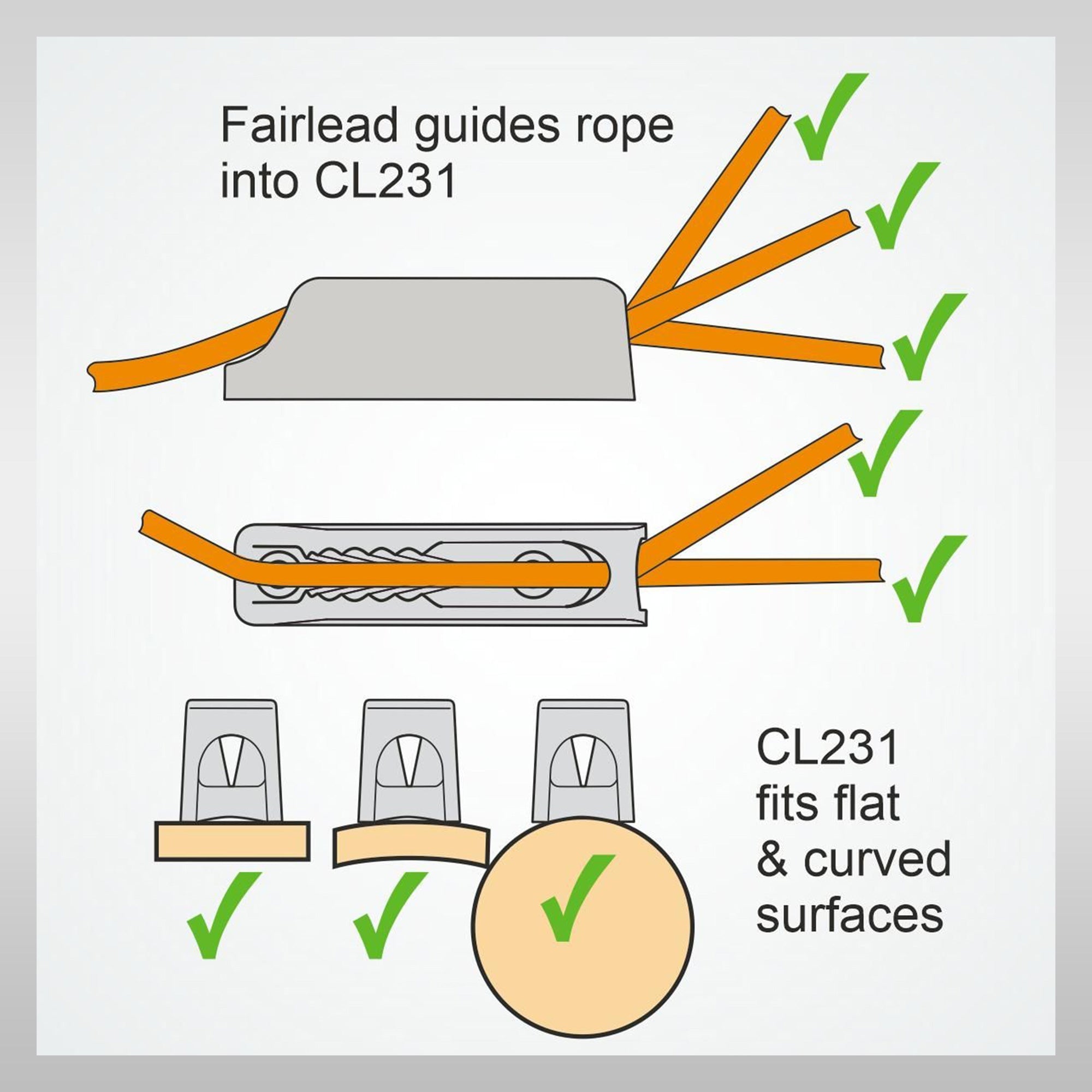

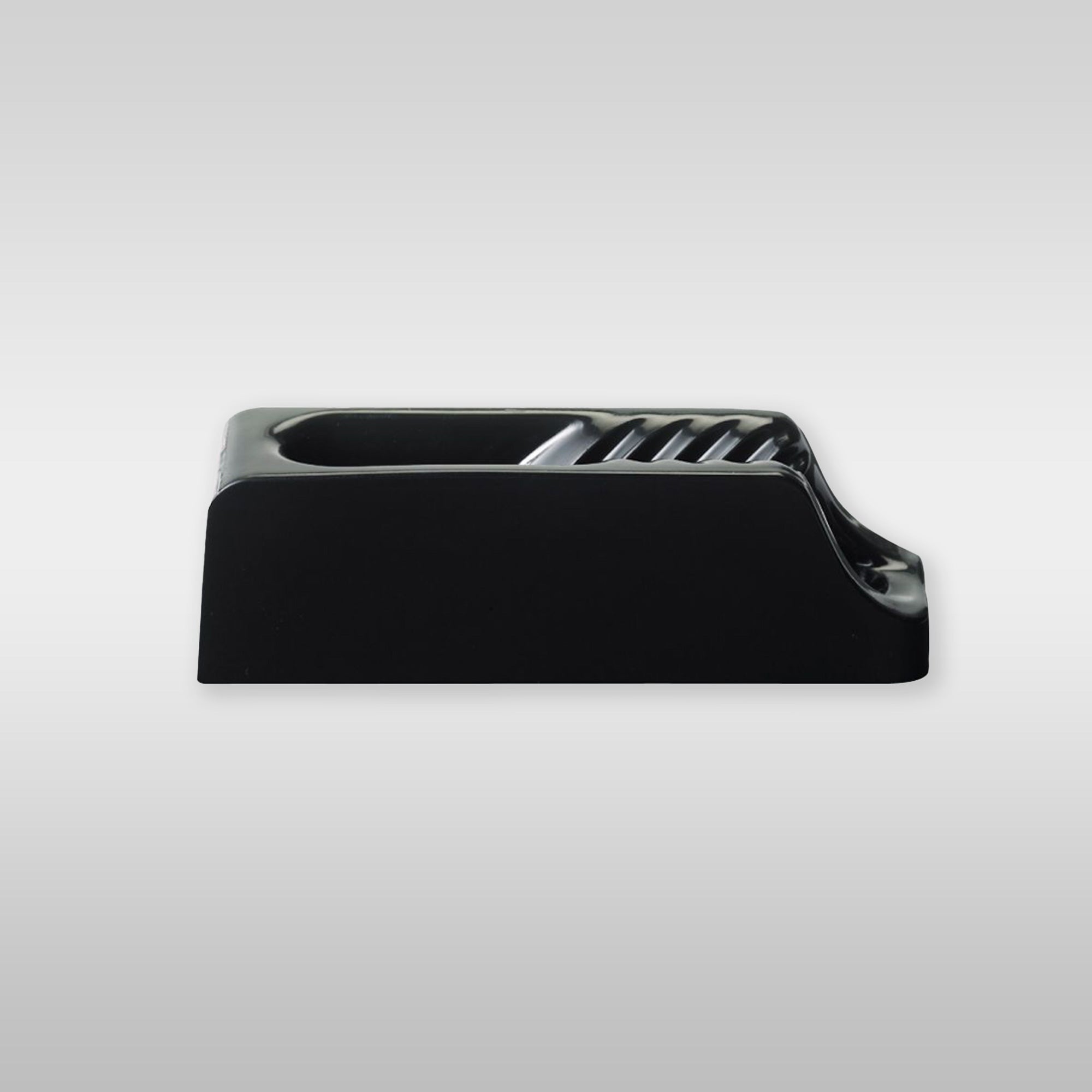

The Clamcleat® CL231 is a compact, black nylon cleat with an integrated fairlead that guides the line cleanly into the teeth at angles of up to 90 degrees. It has the same hole spacing as the CL209 and CL254 and can be mounted on flat or curved surfaces using screws or bolts.
A typical application is tensioning sun sails.
The nylon CL209 has the same hole spacing but does not include a fairlead.
The aluminum CL254 also has the same hole spacing and is available with or without a fairlead.
The nylon CL228 with a fairlead is suitable for larger lines.
For smaller lines, these nylon cleats with fairleads are a good choice: CL272 and CL203.

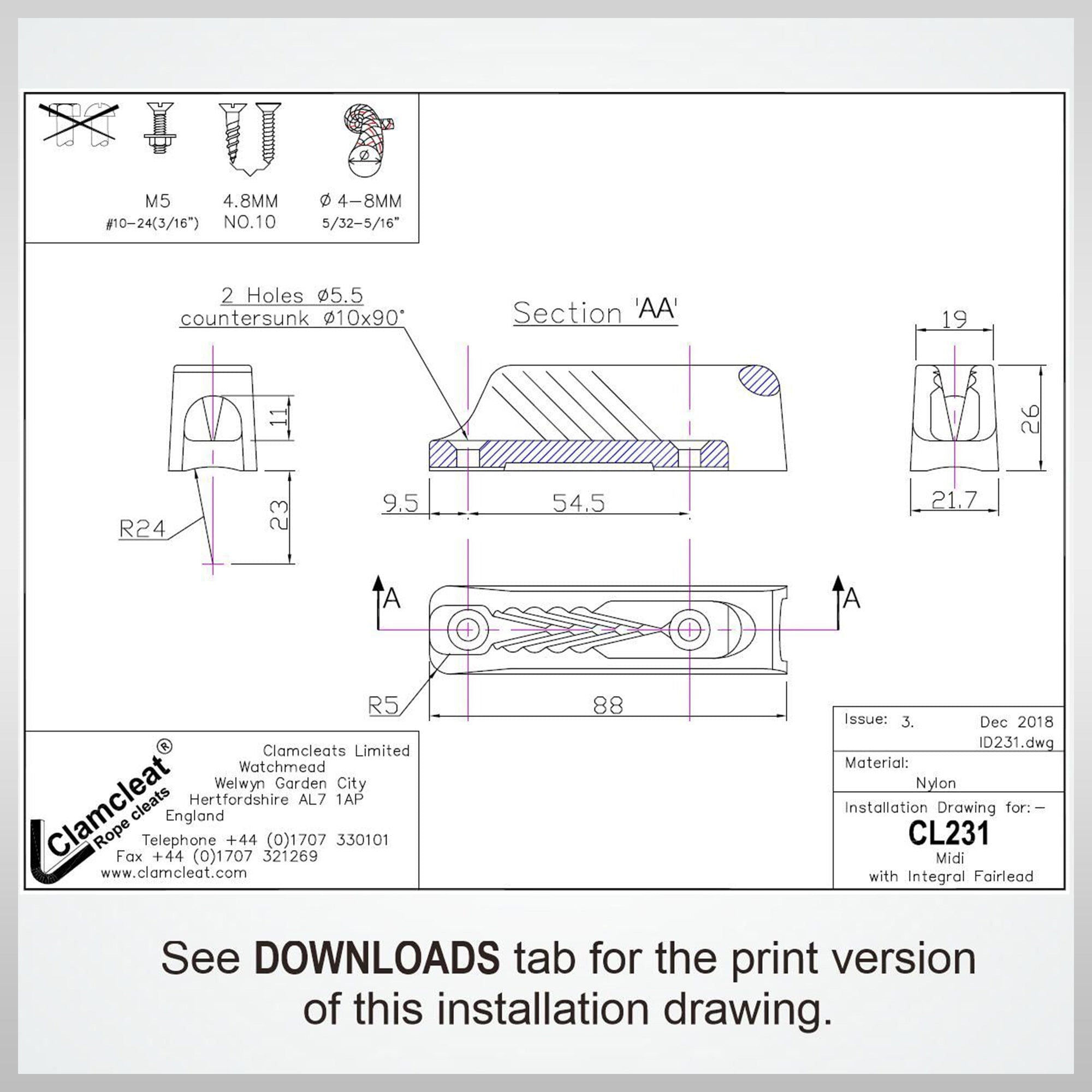

SPECS
| Diameter | Length | Width | Height | Screw Size | Weight |
| 4–8 mm | 88 mm | 22 mm | 26 mm | M5 | 30 g |
